Photovoltaic Module Recycling

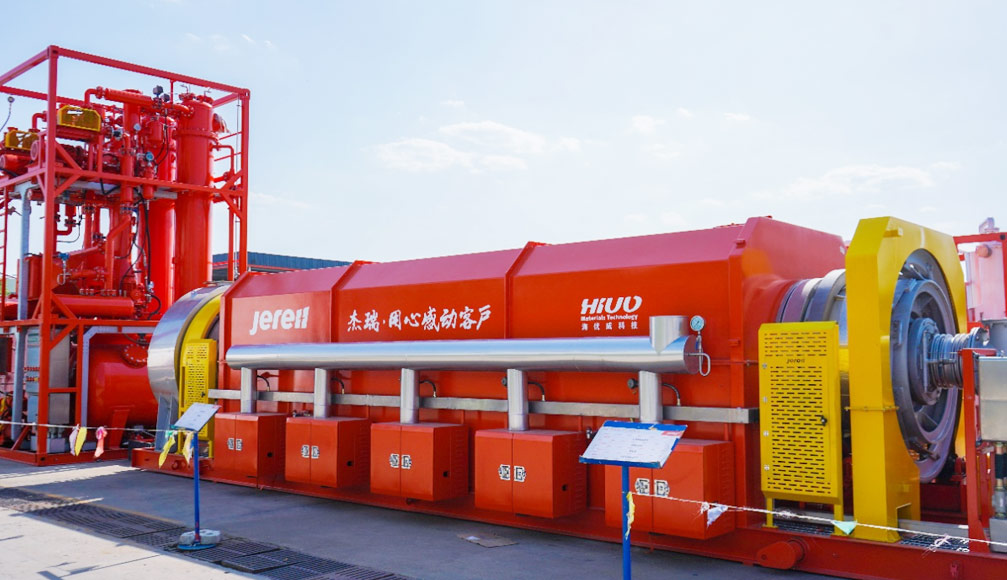

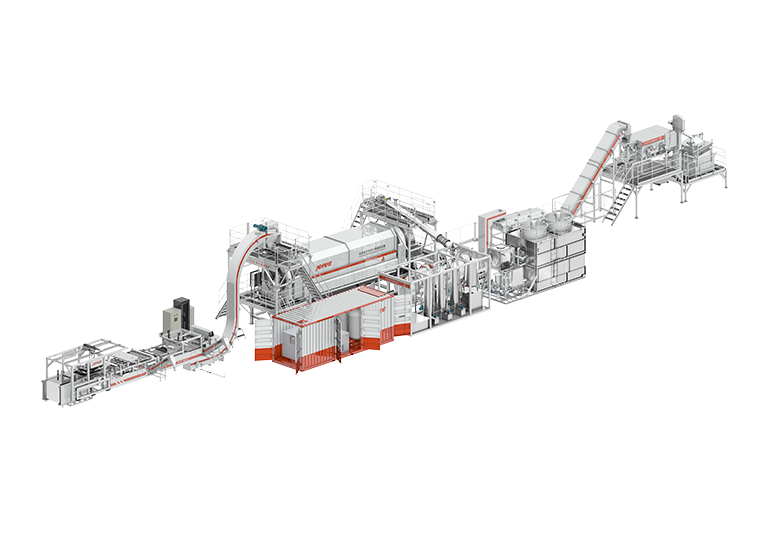

Photovoltaic Module Thermal Desorption Equipment

The equipment performs in-depth processing in distributed or centralized treatment stations, achieving effective separation of components, overcoming the bottlenecks of heat transfer and sealing technology in thermal desorption equipment, ensuring safe and stable operation under complex conditions, and obtaining valuable materials such as copper strips, pyrolysis oil, and silver-containing silicon wafers.

click to see more Click to collapse
  • Equipment advantage
  • Technical parameter
  • Applications
Equipment advantage
  • Intelligent Operation and Dynamic Monitoring

    Precise positioning through visual recognition, doubling the automatic disassembly efficiency.

  • Continuous Stability and Cost-Effective Efficiency

    Fully automatic control, continuous system operation.

  • Precise Separation and Efficient Recycling

    Full component recovery of glass, copper strips, recovery oil, and silver-containing silicon wafers.

Technical parameter
ModelTGH10000B
Dimensions52000×12000×6700mm
Footprint540㎡
Power235kW
Processing Capacity10000t/年
Heating ModeElectric/Gas
Applications
